AiM Two-Way Data Hub CAN Connection Multiplier

AiM Two-Way Data Hub CAN Connection Multiplier
  Zoom
 AiM Two-Way Data Hub CAN Connection MultiplierAiM Two-Way Data Hub CAN Connection Multiplier

AiM

  • For MyChron4, MyChron5, Mychron5 S and Mychron5 S 2T
  • CAN Expansion Port Plus Two Additional Sensor Inputs
  • Build A Network and add Optional Extras
  • Our Price:  £50.00(Exc. 20% VAT)(£60.00 Inc. VAT)

    Part Number:  S-2PH-X08HB2GK0


    AiM Two-Way Data Hub CAN Connection Multiplier

    The AiM two-way Data Hub provides a CAN channel and works as an interface between our AiM loggers and sensors.

    Key Features:

    • Five pins 712 Male Binder
    • Two-Way Hub
    • CAN Connection Build a Network
    • CAN Connection for Further Expansion

    The compact two-way data hub with 12V flying leads provides CAN channel and works as an interface between our Loggers and equipment such as LCU Lambda Controller, GPS Module, TC Hub, SmartyCams and many more.

    Using many devices can result in excessive wiring. Thanks to the data hub, it can eliminate all unnecessary wiring.

    The two-way Data Hub takes all the information you need to your logger with only one cable, minimizing wires overall.

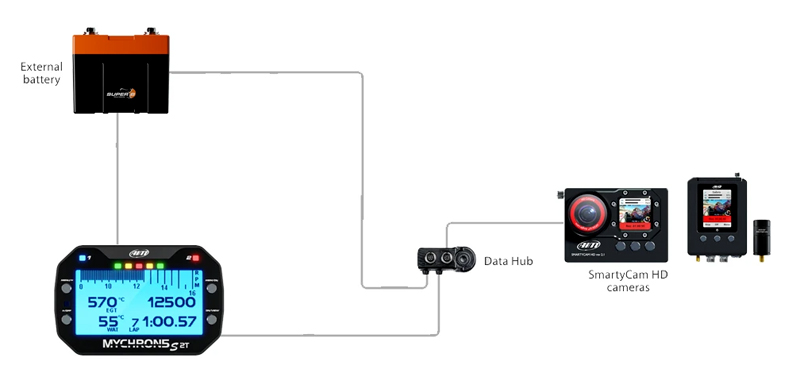

    You can connect more Data Hubs to build a network. You can see it in the image below.

    Our Data Hubs are also available in the following versions and are in the accessories tab.

    • Two-way data hub
    • Four-way data hub

    Connection Examples

    These are some devices that can add extra data to your vehicle for incrementing performance and data.

  • For MyChron4, MyChron5, Mychron5 S and Mychron5 S 2T
  • CAN Expansion Port Plus Two Additional Sensor Inputs
  • Build A Network and add Optional Extras

  • Dimensions: 127 x 24 x 33mm
  • Weight: 194g
  • Sampling Frequency: 10Hz
  • Waterproof: IP65
  • Power: 2 pin Binder 712 Female connector
  • Channel 1, 2, 3, 4: 4 pin Binder 712 Female connector
  • EXP: 5 pin Binder 712 Female connector
