AiM

  • For MyChron4, MyChron5, Mychron5 S and Mychron5 S 2T
  • CAN Expansion Port Plus Four Additional Sensor Inputs
  • Build A Network and add Optional Extras
  • Our Price:  £50.00(Exc. 20% VAT)(£60.00 Inc. VAT)


    Part Number:  CAN-M-40-X08HUB010


    AiM Four-Way Data Hub CAN Connection Multiplier

    The AiM four-way Data Hub provides a CAN channel and works as an interface between our AiM loggers and sensors.

    Key Features:

    • Five pins 712 Male Binder
    • Four-Way Hub
    • CAN Connection Build a Network
    • CAN Connection for Further Expansion

    The compact Data Hub provides four additional CAN channels and works as an interface between the AiM logger and its peripheral devices and accessories. Such as the LCU Lambda Controller, GPS Module, TC Hub (thermocouple multiplier), Memory key and SmartyCams.

    Using many devices can result in excessive wiring. Thanks to the data hub, it can eliminate all unnecessary wiring.

    The four-way Data Hub takes all the information you need to your logger with only one cable, minimizing wires overall.

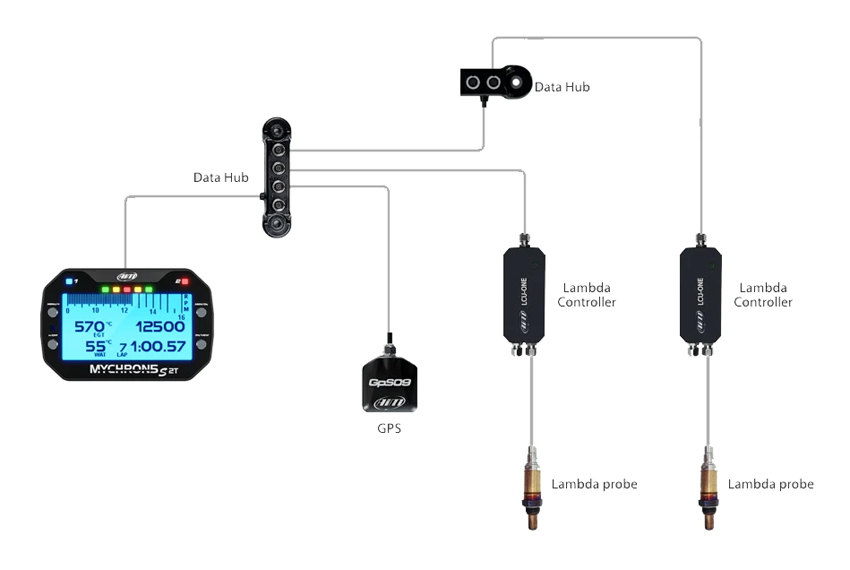

    You can connect more Data Hubs to build a network. You can see it in the image below.

    You can use the four-way Data Hub with our Mychron's and loggers powered by the vehicles 12V onboard battery supply.

    Our Data Hubs are also available in the following versions and are in the accessories tab.

    • Two-way data hub with external power leads
    • Two-way data hub

    Connection Examples

    These are some devices that can add extra data to your vehicle for incrementing performance and data.

  • For MyChron4, MyChron5, Mychron5 S and Mychron5 S 2T
  • CAN Expansion Port Plus Four Additional Sensor Inputs
  • Build A Network and add Optional Extras

  • Dimensions: 127 x 24 x 33mm
  • Weight: 194g
  • Sampling Frequency: 10Hz
  • Waterproof: IP65
  • Power: 2 pin Binder 712 Female connector
  • Channel 1, 2, 3, 4: 4 pin Binder 712 Female connector
  • EXP: 5 pin Binder 712 Female connector
