Hillman Imp  6 Pt Bolt In Roll Cage pre '69
Hillman Imp  6 Pt Bolt In Roll Cage pre '69

Hillman Imp 6 Pt Bolt In Roll Cage pre '69

£875.00
(Exc. 20% VAT)
(£1,050.00 Inc. VAT)
1
2
3
4
5
6
+
Part Number
C002-1
  • FIA and MSA approved roll cage
  • Complete cage complete with door bars
  • Made from CDS steel tube with brackets
  • Includes all reinforcements & fasteners
  • Safety Devices
    Description

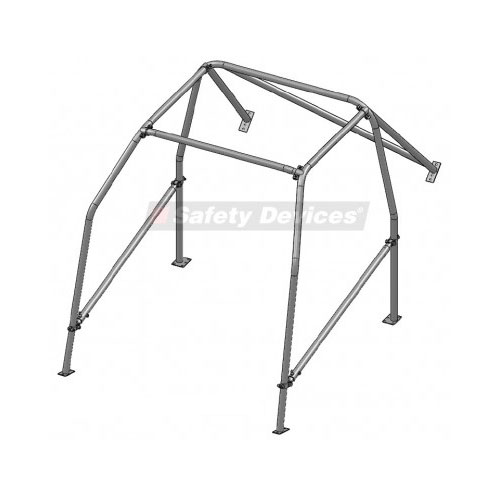

    The Safety Devices 'C002' 6 point bolt-in roll cage fits all 2 door Imps from 1963 to 1969. It clears the original trim and dashboard without modifications (pre-1969 dashboard change), the front cage mounts to the floor and the rear cage mounts to the floor and rear wheel arches.

    Cages include a pair of universal door bars, reinforcement plates and fasteners. Cages are supplied with a black powder coated finish as standard. Image for illustration purposes - actual cages may differ slightly. Rear door pockets may need to be removed for installation of this rear cage. MSA/FIA Homologated

    Please Note: All roll cages can be ordered in bare metal at no extra charge or in various colours with an additional cost and due to their size most roll cages are shipped on a pallet. If you wish to order a non-standard roll cage or require shipping outside the UK mainland, please CONTACT US to discuss all your requirements.

    There are 6 different rear cage section models available for these earlier Imp's, please review the details below and choose the cage option that best meets your requirements.

    Roll cage options:

  • Option 1 - Front cage + rear cage (fixed single diagonal) + door bars
  • Option 2 - Front cage + rear cage (fixed single diagonal) + seat belt mounts* + door bars
  • Option 3 - Front cage + rear cage (fixed single diagonal) + harness bar + door bars
  • Option 4 - Front cage + rear cage (fixed single diagonal) + harness bar + seat belt mounts* + door bars
  • Option 5 - Front cage + rear cage (fixed cross diagonal) + harness bar + door bars
  • Option 6 - Front cage + rear cage (fixed cross diagonal) + harness bar + seat belt mounts* + door bars
  • *Seat belt mounts for standard lap and shoulder 3 point seatbelts.

    MSA/FIA homologated - Certificate No: 299

    (Independently certified, certificate available from the MSA - Tel: 01753 765000)

    C002 Cage Attributes

    Hillman Imp - pre 1969 dashboard change

    • Option 1: Front Cage, Rear Cage (fixed diagonal), 2 x Door Bars (universal)
      [RBC002 3SSS + RBC002 5SSS + 2 x RB00A1]

    • Option 2: Front Cage, Rear Cage (fixed diagonal + seatbelt mount), 2 x Door Bars (universal)
      [RBC002 3SSS + RBC002 5SSS/B + 2 x RB00A1]

    • Option 3: Front Cage, Rear Cage (fixed diagonal + harness bar), 2 x Door Bars (universal)
      [RBC002 3SSS + RRBC002 5SSS-HB + 2 x RB00A1]

    • Option 4: Front Cage, Rear Cage (fixed diagonal + harness bar + seatbelt mount), 2 x Door Bars (universal)
      [RBC002 3SSS + RRBC002 5SSS/B-HB + 2 x RB00A1]

    • Option 5: Front Cage, Rear Cage (cross diagonal + harness bar), 2 x Door Bars (universal)
      [RBC002 3SSS + RBC002 5SXS + 2 x RB00A1]

    • Option 6: Front Cage, Rear Cage (cross diagonal + harness bar + seatbelt mount), 2 x Door Bars (universal)
      [RBC002 3SSS + RBC002 5SXS/B + 2 x RB00A1]
