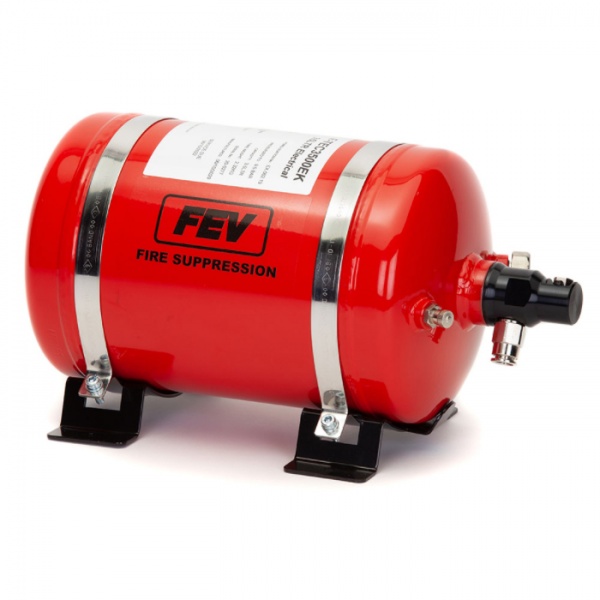

FEV 3.5 litre, 6 nozzle, electrically operated plumbed in, AFFF fire extinguisher system. Supplied as a complete kit with all necessary components for a professional fire suppression system. Technical list 16 FiA/MSUK Approved, this 3.5 litre F-TEC foam fire suppression system, features a steel cylinder and electrical push button operation. F-TEC foam is freeze protected to -15 degrees and has excellent properties to eliminate re-ignition. This system is supplied with 6 of FEV's newly developed atomising foam nozzles, producing a fine mist resulting in a much larger surface area coverage. 4 discharge in the engine bay and 2 discharge into the cockpit area giving full 360° protection. All FEV kits include installation instructions.

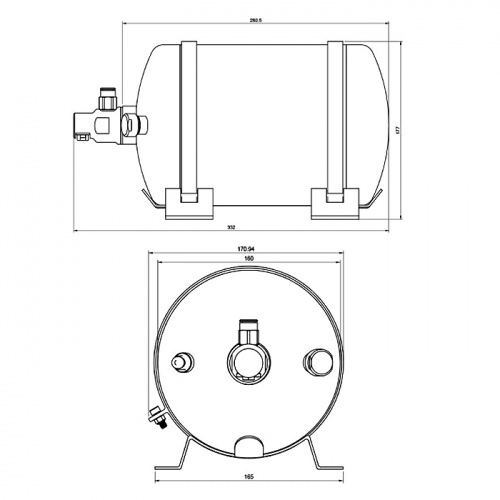

Overall dimensions: 332mm length, 177mm height, 170.94mm width, 160mm bottle diameter, 7.550kg total weight.

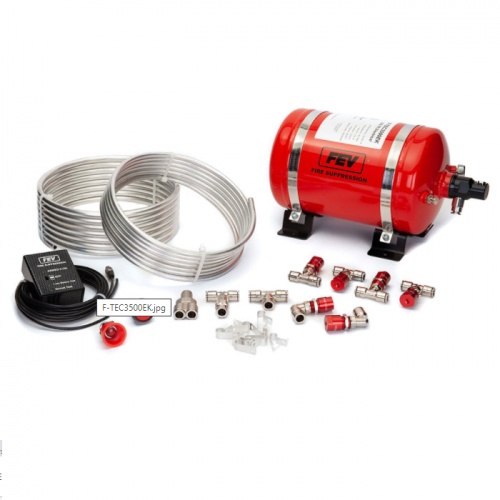

Installation Kit Contents:
- 1 x Bracket and ‘T’ Bolt Straps
- 1 x Control Box
- 1 x Internal Fire Button
- 1 x External Fire Button
- 4.7 mtr x 10mm Aluminium Tubing
- 4.3 mtr x 8mm Aluminium Tubing
- 2 x Cockpit Nozzle with 10mm x ¼ metal Swivel Elbow
- 4 x Engine Nozzle with 8mm x ¼ metal Swivel Tee Connector
- 1 x Metal Tee Connector 10-10
- 1 x Metal Tee Connector 10MM-8MM
- 1 x Metal Y Connector 10mm
- 8 x 8mm Tube Clips
- 8 x 10 mm Tube Clips
- 1 x Large ‘E’ Label
- 1 x Small ‘E’ Label
- 1 x Instructions
