Cartek 16 Channel Power Distribution Panel

Cartek 16 Channel Power Distribution Panel

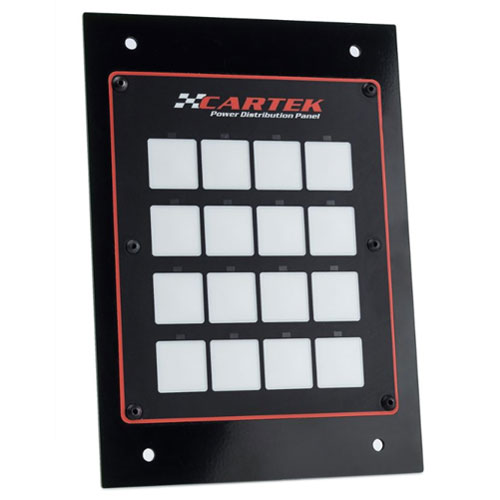

Cartek 16 Channel Power Distribution PanelCartek 16 Channel Power Distribution PanelCartek 16 Channel Power Distribution PanelCartek 16 Channel Power Distribution Panel

Cartek

  • 16 Channels to Control Electrical Items
  • Replaces Switches, Fuses & Circuit Breakers
  • Fully Configurable Circuit Amperage Ratings
  • Cartek Distribution Panel Instructions (PDF)
  • Cartek Distribution Panel Datasheet (PDF)
  • Cartek Distribution Panel Drawing (PDF)
  • Our Price:  £950.00(Exc. 20% VAT)(£1,140.00 Inc. VAT)

    Part Number:  CK-PDP-16


    Special Offer:  Discounts of 5% and 10% are available when you order £250.00 and £750.00 or more of selected products (excludes Bundles , Sale Items, Special Offers)

    Cartek 16 Channel Power Distribution Panel. A fully integrated, fully electronic solution for the power distribution requirements in your race or rally car. This sytems has been designed to replace 16 fuses, relays and switches, as well as a variety of control systems, these units therefore greatly simplify the wiring, reducing build time, saving weight and maximising reliability.

    HOW IT WORKS
    Cartek's power distribution panel takes +12V power directly from the battery and distributes it to all of the electrical systems around the vehicle. All 16 power outputs from the power distribution panel are controlled by the individual push buttons or from external switches and inputs. All 16 power outputs are fully protected with 6 selectable current settings, thereby completely removing the need for fuses or circuit breakers. The Function of each channel is also selectable from a choice of 8 different functions.

    OPERATION
    After configuring the power distribution panel, each channel is operated by pressing the relevant push button on the panel or via external signals such as from an ECU or separate external switches (See details later).

    Above each push button is a Status LED

  • No LED = Channel OFF
  • LED on = Channel ON
  • LED flashing = Over-current or short-circuit detected
  • On power up all channels perform a system reset which is indicated by all 16 LEDs flashing twice.

    FEATURES

  • 16 User Configurable Channels (no Laptop required)
  • Selectable current settings of 5, 10 or 15 Amps
  • Combine two channels together for 20, 25 or 30 Amps
  • Selectable functions include:
    Momentary action (Starter Motor, Washer Pump etc)
    Latching (with memory)
    Latching (without memory)
    Latching with Time Delay (Heated Screen)
    Flashing (Indicators etc)
    Toggling (Headlights High Beam/Low Beam)
    0v Momentary action (use as ordinary switch for ECU Map etc)

    Over Current and Short Circuit Protection - no Fuses or Relays needed

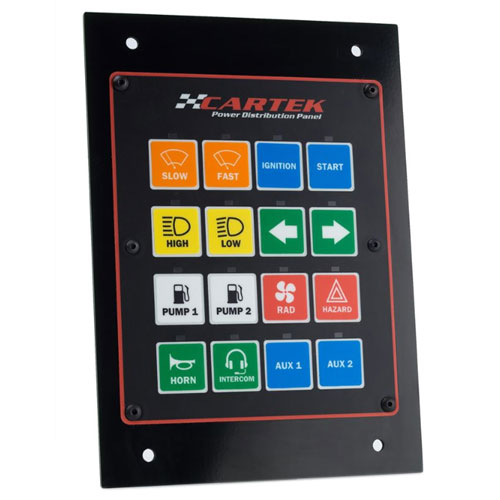

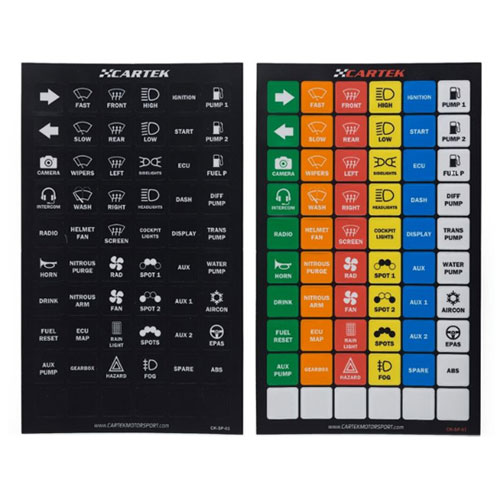

    Multi coloured Label Sheet included for full customisation
    2 Back light settings as standard
    16 Momentary Switch Inputs - allowing any channel to be operated by an additional switch or the Cartek Wireless Control System
    16 ECU Inputs - allows the ECU to turn on channels such as Fuel Pumps
    4 Dedicated function inputs - Flash Input for Lights, Wash Input for Wipers, Wiper Park position etc.

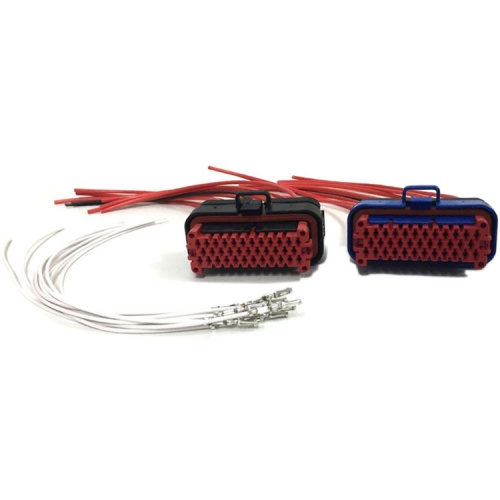

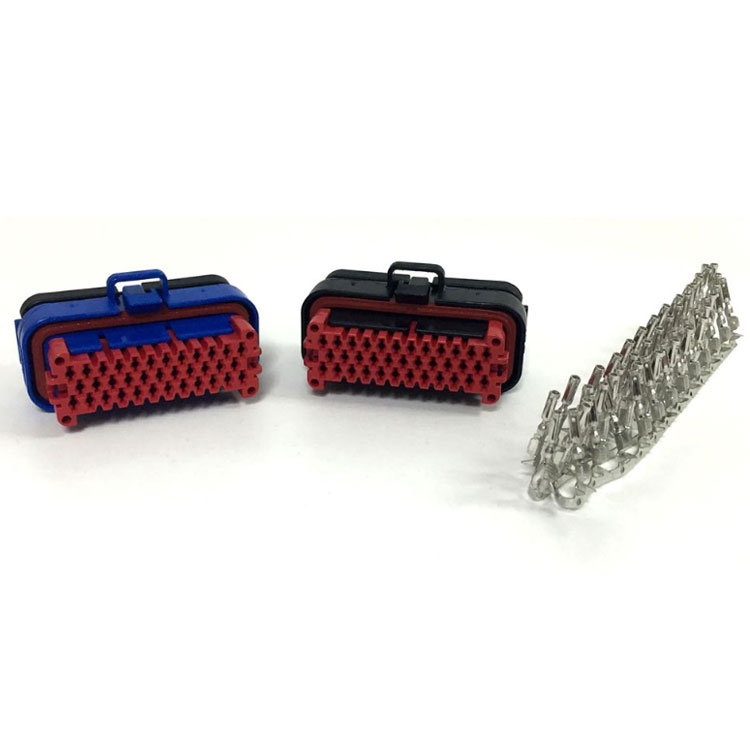

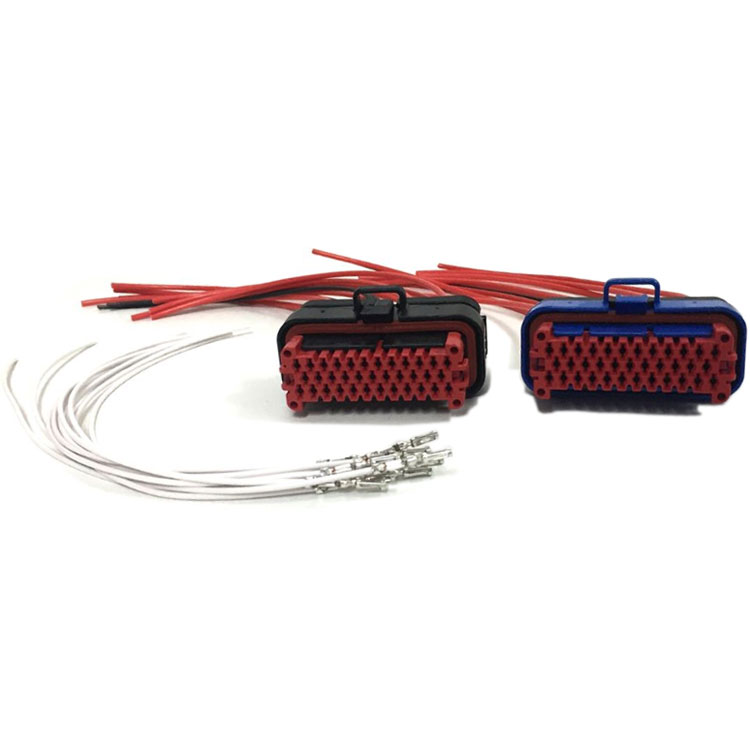

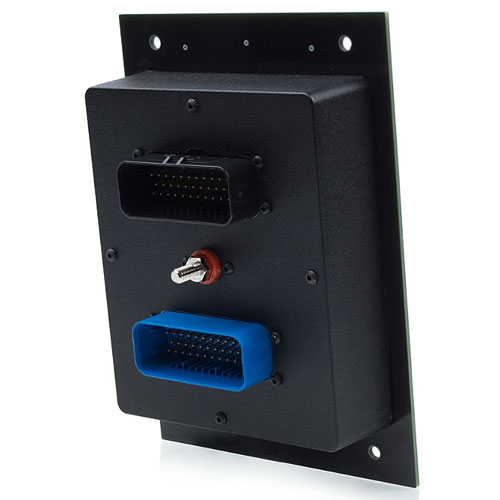

    Supplied without main connectors, these can be selected above in a partially assembled format with flying tails or bare with loose crimp terminals for self assembly?
