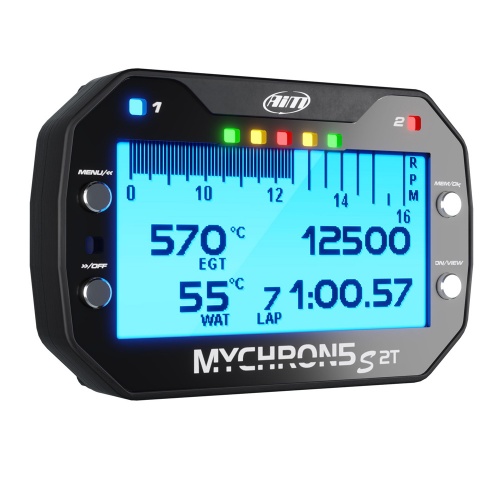

AIM Motorsport MyChron5 S 2T Dash Logger / Kart Lap Timer +GPS

AIM Motorsport MyChron5 S 2T Dash Logger / Kart Lap Timer +GPS
  Zoom
AIM Motorsport MyChron5 S 2T Dash Logger / Kart Lap Timer +GPSAIM Motorsport MyChron5 S 2T Dash Logger / Kart Lap Timer +GPSAIM Motorsport MyChron5 S 2T Dash Logger / Kart Lap Timer +GPSAIM Motorsport MyChron5 S 2T Dash Logger / Kart Lap Timer +GPS

AiM

  • Latest Lap Timing and Data Logger System
  • Automatic Calculations via GPS & Glonass
  • Displays Both Static and Rolling Lap Times

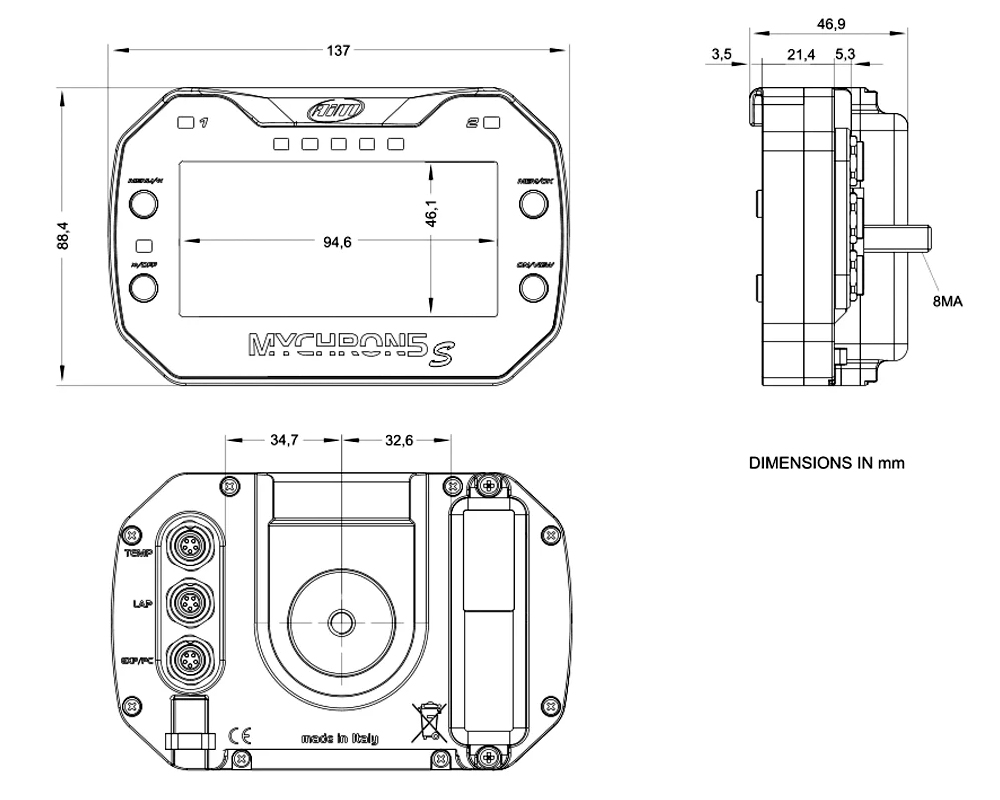

  • Dimensions: 137 x 88 x 30mm, Weight: 390g
  • Our Price:  £455.00(Exc. 20% VAT)(£546.00 Inc. VAT)


    Part Number:  MY52T-CHT


    AiM MyChron 5S T2 Data Logger, the latest, game-changing piece of kit for thrill-seekers and competitive kart racers, on scaled-down circuits and professional tracks, all you need to do is arrive and drive.

    Key Features:

  • Integrated 25Hz GPS Configurable display pages
  • 8 Configurable RGB Backlights 2 Configurable Alarm LEDs
  • Integrated GPS5 RGB LEDs Configure for Each Gear
  • Choice of M5 or M10 Waterproof Water Temp Sensor
  • In the Box:

  • AiM MyChron 5S Data Logger
  • AiM Battery Charger with Cable
  • AiM RPM Cable
  • AiM Water Temperature Sensor (M5 or M10)
  • AiM Sticker

  • MyChron 5S GPS Lap Timer & Water Temperature Sensor

    The latest version of the AiM Mychron 5S 2T has landed. This game-changing datalogger has been specifically designed for Kart racing whether you're on a scaled-down circuit or a professional full-sized motorsport circuit for thrill-seekers and competitive races this is the datalogger for you.

    The GPS frequency has improved from 10 to 25Hz and the precision and accuracy have been improved from about 5 feet to 2.

    With integrated GPS this system takes advantage of AiM's global track database, to automatically understand which track you're at. When you get to the track switch on your MyChron 5S and it will determine its position, identify the track and start loading start/finish line coordinates. Even the predictive time is much more reliable thanks to the improved GPS you will know the exact time gap vs, your best lap.

    The MyChron 5S Kart lap timer features a high-resolution graphical display with built-in 25Hz GPS to sample and record lap times. The MyChron 5S combined with a choice of water temperature sensor and RPM connection makes it the ultimate karting lap timer.

    The MyChron 5S logs and stores speed, lap times (including split and predictive), gear, temperature, RPM as well as data from the optional sensors when connected to the MyChron Expansion Box, such as throttle position sensors, brake position and pressure sensors, steering angle sensors and the LCU-One Lambda Controller and SmartyCam which are available in our accessories category.

    MyChron5 S 2T with x2 Temperature Sensor Inputs

    The latest version of the AiM Mychron5 S 2T has landed. Our game-changing datalogger has been specifically designed for Kart racing whether you're on a scaled-down circuit or a professional full-sized motorsport circuit for thrill-seekers and competitive races this is the datalogger for you.

    With this kit, the MyChron 5 S 2T features 2 temperature sensor inputs, which can be used to measure the following, water temperature, "under spark plug" cylinder head temperature (CHT) or exhaust gas temperature (EGT). The number of temperature inputs is the only difference between the MyChron 5S and the MyChron5 S 2T.

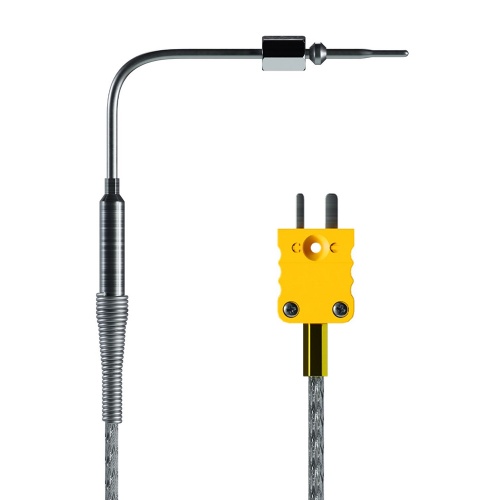

    The MyChron5 S 2T is supplied with one sensor, choose between M10 Water Temperature Sensor, M5 Water Temperature Sensor, Cylinder Head Temperature Sensor (CHT) (Underplug), M5 Exhaust Gas Temperature Sensor or T12 Exhaust Gas Temperature Sensor (Rotex, X30, OK).

    The optional second temperature sensor is connected directly to the dash using the supplied dual/splitter patch lead. This patch lead is suitable for fitting 1 x Exhaust Gas Temperature Sensor (EGT) or 1 x Cylinder Head Temperature Sensor (CHT) and 1 x Water Temperature Sensor.

    Please Note: For other sensor configurations you will need to purchase an alternative patch lead. If you require further sensors these can be added using our MyChron Expansion Module - See the accessories tab.

    The GPS frequency has improved from 10 to 25Hz and the precision and accuracy have been improved from about 5 feet to 2.

    With integrated GPS this system takes advantage of our global track database, to automatically understand which track you're at. When you get to the track switch on your MyChron 5 S 2T and it will determine its position, identify the track and start/finish line coordinates. Even the predictive time is much more reliable. Thanks to the GPS you will know the exact time gap vs your best lap.

    The MyChron5 S 2T kart lap timer features a high-resolution graphical display with a built-in 25Hz GPS to sample and record lap times. The MyChron5 S 2T combined with a choice of water temperature sensor and RPM connection makes it the ultimate karting lap timer.

    The MyChron5 S 2T logs and stores speed, lap times (including split and predictive), gear, temperature, RPM as well as data coming from the optional sensors when connected to the MyChron Expansion Box, such as throttle position sensors, brake and position sensors, steering angle sensors and the LCU-One Lambda Controller and SmartyCam which are available in our accessories tab.

    With this kit, you can choose a water temperature sensor M5, M10, Cylinder Head Temperature Sensor (CHT) or Exhaust Gas Temperature Sensor (EGT). T12 Exhaust Gas Temperature Sensor. Only one supplied.

    With this kit choose between an M5 or M10 Water Temperature Sensor, only one is supplied.


    Display

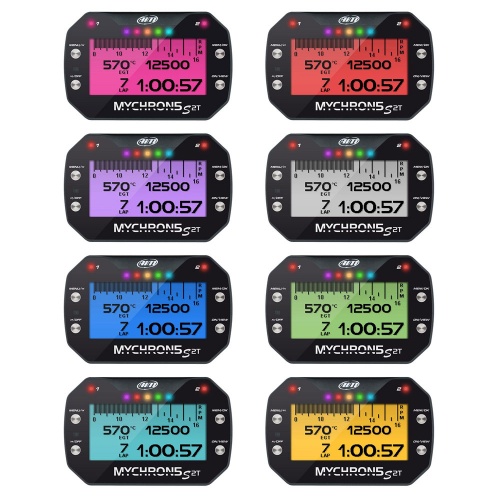

    The MyChron 5S has seven display colours to choose from. This will enable you to have a clear view and easily read numerical readouts on the track such as your lap times and lap number, RPM and one temperature value. When your back at the paddock you can scroll through all your data on the display.

    The Nylon chassis and metallic push buttons guarantee even more resistance to shock and water, while the anti-scratch non-reflecting polycarbonate screen and wider display offer great readability.

    The MyChron 5S also features an ambient light sensor providing optimum viewing in diverse lighting conditions, the display brightness is automatically adjusted according to the environment light.


    Shift Light & Alarm LEDs

    The MyChron 5S features five RGB LED shift lights that can be configured for each gear. You can choose the colour and value threshold for the activation, or configure them to show your best lap time/split time, monitor the RPM level.

    The alarm LEDs are also easily configurable to the engine parameters you require, such as exhaust gas temperature (EGT) and water temperature.


    Configurable Pages

    There are various options for you to configure your display for whatever suits your viewing. You can do this via the software or the device.

    The MyChron 5S has built-in Wi-Fi which enables you to download your data and customise advanced GPS coordinates for split times via Race Studio 3.

    You can assign a password so you can securely protect your data.


    Rechargeable Lithium Battery

    The MyChron 5S is powered by a detachable rechargeable lithium battery. The battery life lasts approximately 10 hours of use.

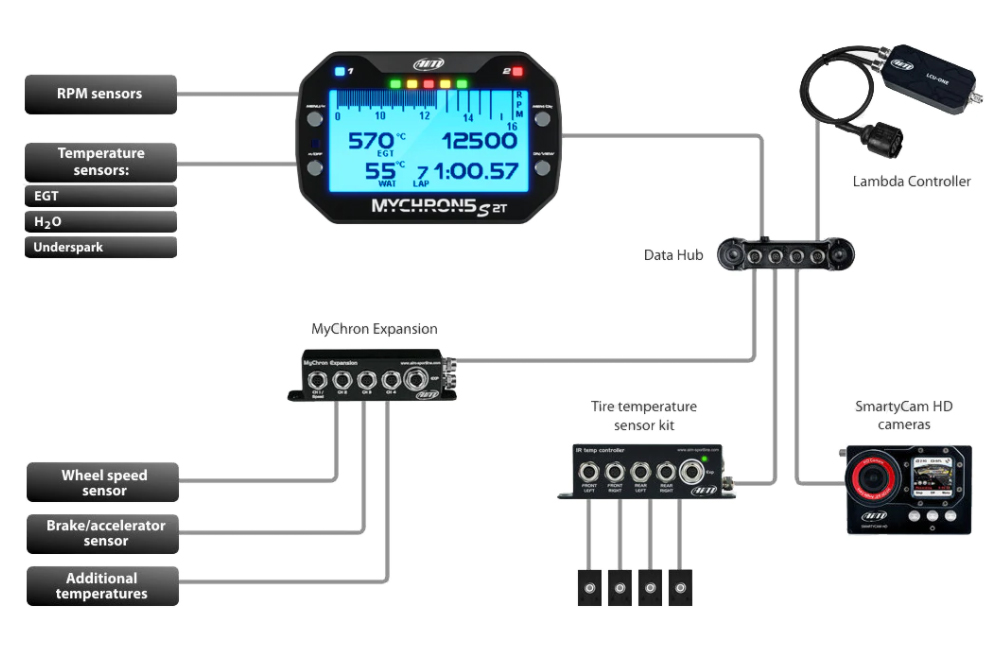

    Expand Your System

    These are only some of the items that can be added to the MyChron 5S for incrementing the performance and the data acquired.

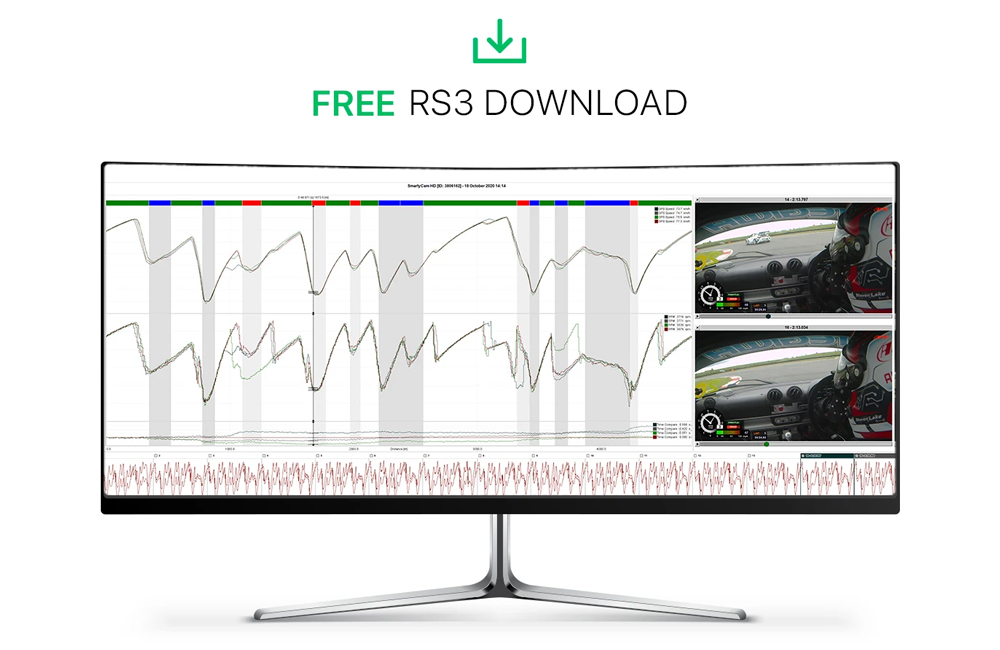

    Analyse With Race Studio 3

    Analysis - with Race Studio 3 you can also analyse all data recorded and downloaded to your PC: graphs, histograms and tables will help you study your performance, providing an objective support to avoid mistakes and improve performances.


  • Latest Lap Timing and Data Logger System
  • Automatic Calculations via GPS & Glonass
  • Displays Both Static and Rolling Lap Times
  • Dimensions: 137 x 88 x 30mm, Weight: 390g

  • Be the first to Write a Review for this item!
