MSAR Ltd

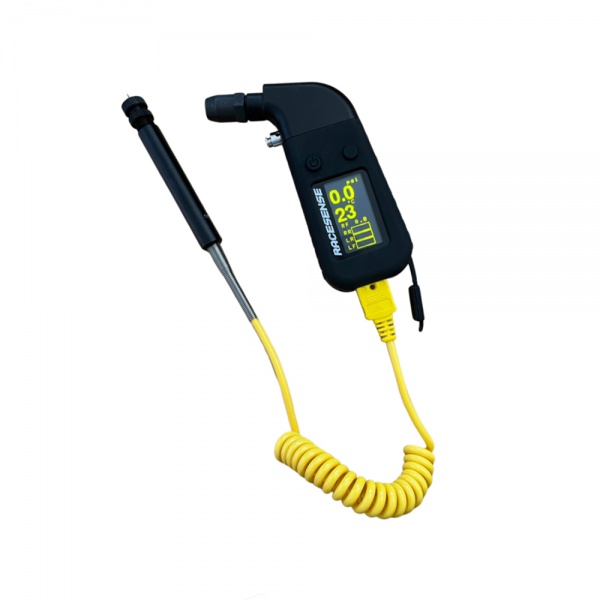

RaceSense Pocket Tyre Gauge + Pyrometer
RaceSense Pocket Tyre Gauge + Pyrometer

RaceSense Pocket Tyre Gauge + Pyrometer

£229.17
(Exc. 20% VAT)
(£275.00 Inc. VAT)
+
Part Number
RSPOCKETP

RaceSense Pocket Tyre Pressure Gauge DATASHEET (PDF)

  • Handy Pocket Sized Tyre Pressure Gauge
  • Highly Accurate Display to within 0.1 psi
  • Supplied Complete with Temperature Probe

  • Fastmate
    Description

    RaceSense Pocket tyre pressure gauge with pyrometer or temperature probe. Never forget your tyre pressures again, the RaceSense Pocket saves your data and syncs to your phone so you always have your tyre data to hand and as it's name suggests, it fits neatly into your pocket too!

    Accurate

    These Pocket gauges are designed to be very precise, with measurements typically accurate to less than 0.1 psi and the gauge is sensitive to pressure variations down to 0.01 psi.

  • Accurate to 0.1 psi*
  • Range 4 to 150 psi
  • Switch between psi, bar, kPa or kg/cm2
  • Automatic tyre mode records initial pressures (max) and adjusted pressures
  • Ambient temperature
  • Beeps when pressure reading is stable
  • Plug in our fast response type K thermocouple tyre probe for temp readings too**

  • Multi-Tyre Mode

    The RaceSense Pocket has a multi-tyre mode which is a real game changer for quick pit stops. There is no need to remember or write down pressures.

  • Record pressures on all tyres without pressing any buttons
  • Starting tyre and direction can be preset (anti-clockwise / clockwise)
  • 2 or 4 tyre mode
  • Record tyre temperatures (inner, middle, outer - per tyre) with thermocouple probe
  • Set vehicle number

  • TO USE: Just fit the chuck on first tyre valve, adjust pressure until correct, move onto next tyre, adjust pressure and so on. After all tyres have been measured the data will be saved automatically with time and date and ambient temperature and can then be exported. Initial and adjusted pressures are all recorded. If a thermocouple is used then tyre temperatures are also saved. The RaceSense iOS and Android smartphone apps will add location, weather and wind conditions.

    Temperature Too

    This kits includes RaceSense's fast response, adjustable and highly accurate temperature probe (pyrometer) to be used with the RaceSense Pocket pressure gauge.

  • Quick response: After insertion it typically takes 2 seconds for the probe to reach 90% of the final temperature, 3 seconds for 95% and 4 seconds + for the temperature response to level out.The gauge even shows Up or Down arrows if the temperature is changing. These will disappear when stable.
  • Adjustable depth: There is a screw adjuster and locking nut so that the tyre can be probed at a consistent depth. A depth of between 3 and 5mm is recommended. The probe can be adjusted up to 15mm which will puncture most tyres. To avoid punctures the needle should obviously not be inserted too deep and the probe should be inserted into the tyre blocks only and not the grooves/voids or sides. Take care with very worn tyres.
  • Avoid heat sources: Temperature accuracy will be affected if e.g. the gauge or probe are heated (or cooled). So, do not leave the gauge and probe near sources of heat or where large thermal gradients may be expected e.g. in direct sunlight, on top of engine, near heaters or fans etc.
  • Car setup, tyre pressures, track conditions and driving style will all affect the bulk tyre temperatures. It does not make sense to compare readings from different car or tyre types or different probe depths.

  • Sync to Your Smart Phone

    The Racesense Pocket has a built in phone link, tap to your phone and view the data in the app. No pairing is needed and the upload takes less than a second.

  • Shows maximum and adjusted pressures for each tyre
  • Temperatures from inner, middle and outer of each tyre, track and ambient temperature**
  • Auto-senses GPS location when downloading
  • Auto-senses weather conditions, atmospheric pressure, wind speed and wind direction
  • Add notes, edit location, add vehicle and tyre set number
  • Analyse and compare hot and cold runs
  • Share individual or all records by sms / whatsapp / email

  • NFC enabled phone required: Phone 7 and above, Android 5.5+ with NFC. Apps downloadable from the App store and Google Play. No phone available? No worries, RaceSense Pocket plugs into a computer too so you can download a CSV file of your data. No hardware drivers are needed for this so no installation is required beforehand.

    Want to Keep Your Pressures Secret?

    Use 'OFFSET MODE' to input your desired pressures beforehand. RaceSense Pocket will show the offset from these values rather than actual pressures on the screen. Just adjust until you reach zero and no one will know what pressures you are running!

    Designed for the Rigours of Track Life!

  • CNC machined powder-coated aluminium case
  • Integral rubber cover
  • Bleed valve lets you precisely adjust your pressures
  • Polycarbonate screen
  • Water resistant
  • Buttons are rubber sealed
  • Sunlight readable OLED display

  • USB connection for recharging, upgrading and data download (battery life > 3 months in standby or 24 hours continuous use).

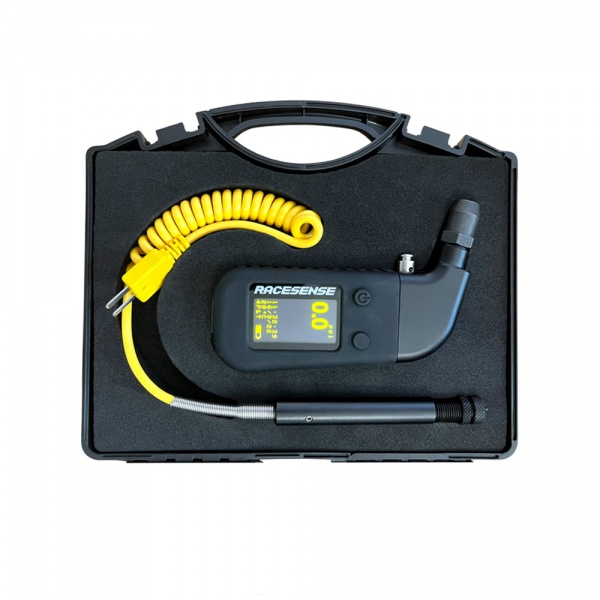

    CONTENTS: RaceSense Pocket Tyre Gauge, usb cable, manual, sturdy carrying case. Optional temperature probe.

    Priced as a Boxed Kit
