Tillett B6 Carbon GRP Seat

(Exc. 20% VAT)
(£1,110.00 Inc. VAT)
Standard - 40cm External (Trimmed)
Standard - 44cm External (Un-Trimmed)
X-Large - 43cm External (Trimmed)
X-Large - 47cm (Un-Trimmed)
Base Mount (Caterham type)
Side Mount (Elise type)
Part Number
Seat Homologation
NOT Approved

Tillett B6 Carbon GRP seat, a narrow seat suited to many kit car and track day cars. It's driving angle is based on the popular Caterham R500 seat, but it has some important differences. The headrest has been moved back to prevent the driver's head from being pushed forward when using a crash helmet and the shoulder belt holes have been designed to allow the use of a HANS/FHR device.

The side slots have been enlarged to accomodate wider lap belts and the composite shell is designed so that the outer edge can either removed for narrow 40cm or 43cm tubs if required. To give that extra bit of comfort, versions of the B6 seats are available with Dinamica covered, soft padded suede panels and the B6 is also available in an all GRP composite with a plain black gel coat.

The mounting points for the B6 are under the seat so that the TR1 Tillett Adjustment Runners can be bolted directly to the underside (must be spaced 1cm for handle clearance). Mounting of the seat is also possible straight to the floorpan and Nylon spacers can be supplied to tip the seat to different angles.

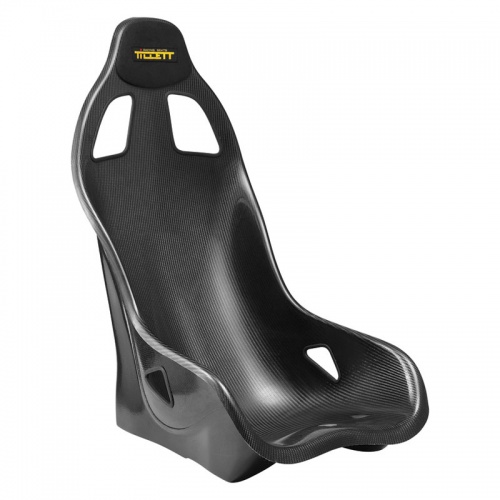

Carbon Fibre Faced GRP Model Shown

Tillett Car Seats
For lightweight sports, race, kit and track day cars. The success of the Tillett seat designed for the Caterham R500 has created a demand for a Tillett car seats, made especially for the Kit and Track Day market.

Using all the techniques developed for the manufacture of kart racing seats and the twin skin technology first developed for the Caterham seat, Tillett have made car seats that break new ground in the performance car seat market.

For years, Tillett Racing Seats have been supplying composite car seats to Caterham Cars. Caterham were so impressed with their composite seat quality, that now all Caterham carbon fibre components are made by Tillett.

  • Perfect for Trackday and Kit Cars
  • Trimmed Shells for Narrow Cockpits
  • Natural Carbon Fibre Faced Finish
  • Similar to the Caterham 500 Seat
  • Dinamica Suede Covered Headrest
  • Enlarged Side Slots for 3" Lap Belts
  • Accomodates Wearing a Helmet & HANS

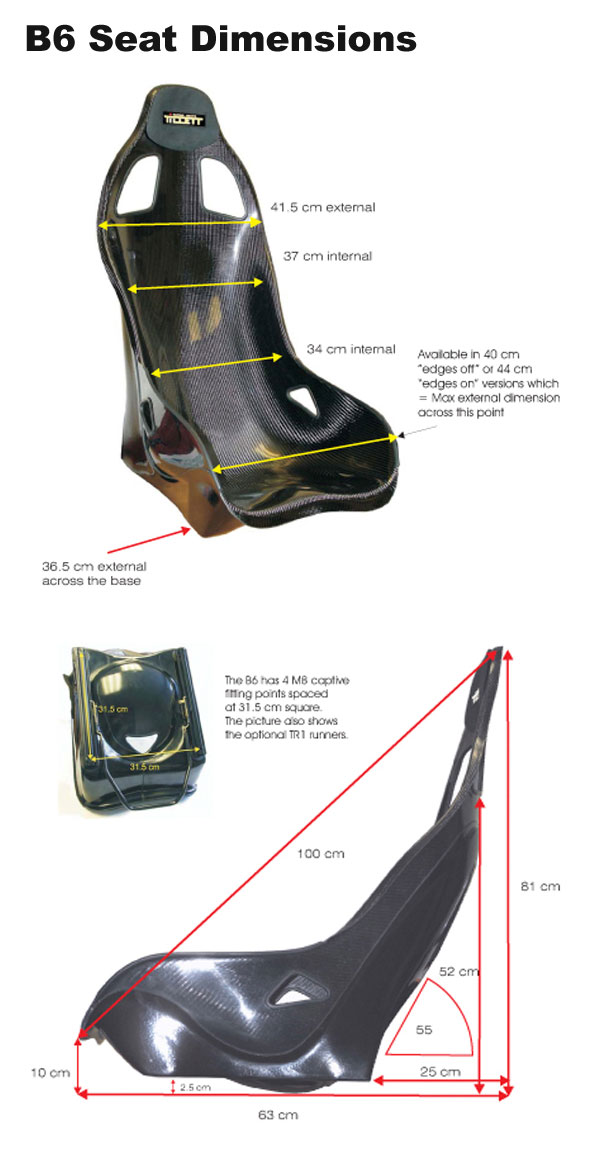

  • Seat Dimensions
